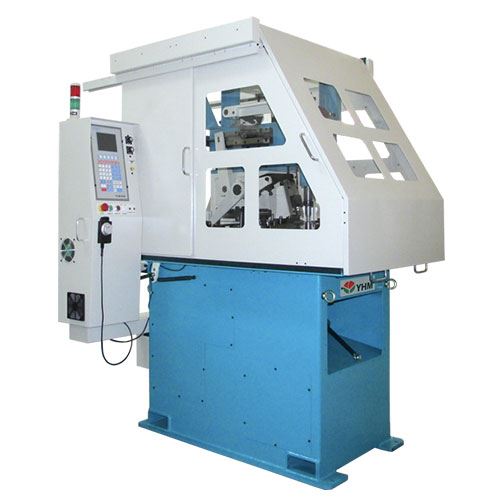

PRODUCTS PF Series CNC Air Coil Winding Machine

Model:PF-350

Feature Of Product

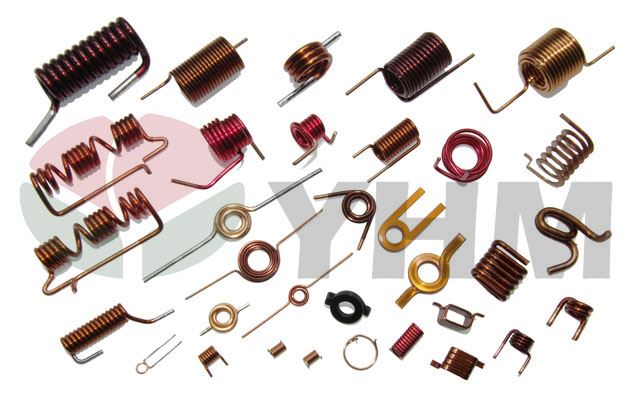

  1. Suitable for production of precise air coils in high speed.

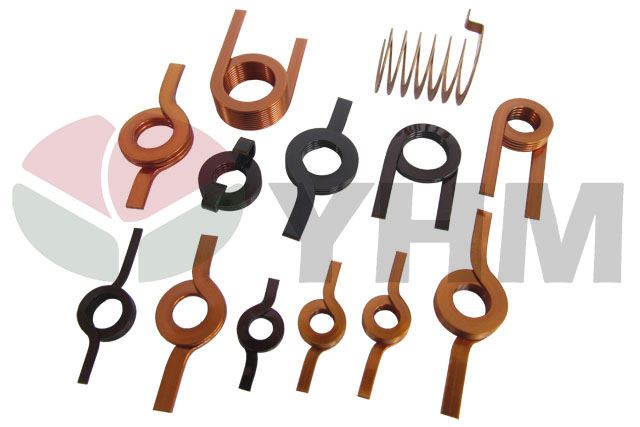

  2. This machine can coil round wire, square wire and flat wire, to one layer or multi-layer.
  3. Wound by spindle, spring diameter is consistent and stable.
  4. With tool stamping and bending, spring angle is consistent and precise.
  5. Pitch is controlled by servo which makes set up easier and shorten set up time.
  6. Complete peripheral equipment, such as stripping machine and stripping sensor, all can be controlled by machine and complete the production at a time.

Item Specification
Wire diameter(magnetic wire) Ø1.6~5.0 mm
Max. outside diameter Ø35 mm
Axis 3 axis
Winding direction Left hand/ right hand
Machine dimension(W/L/H) 1480x980x1750(mm)
Machine net weight 1000kg
