PRODUCTS CF Series CNC Spring Machine


Feature Of Product

  1. For producing compression springs in high speed, for example: helical, conical, hourglass, barrel type springs.
  2. With three pairs of feed roller, which makes feed pressure steady and beneficial to coil spring of small index.
  3. Wide wire range, both round and flat wire can be coiled, spring free length is unlimited
  4. Three-axis servo controlled, spring outside diameter, pitch and length can be changed simply by modifying program,which is especially suitable for set up complicate compression springs and it greatly shortens set up time.

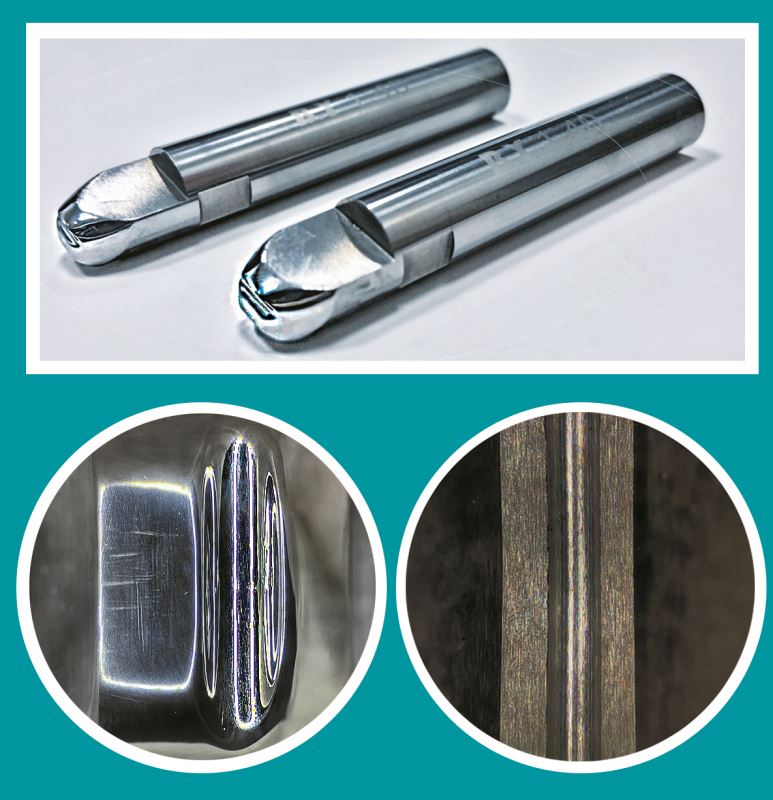

  5. Completed production peripheral equipment for CF series compression spring former.This series provides completed production peripheral equipment, such as stereomicroscopes for setting up the machine, spring supporters for producing long compression spring, CCD profile magnifier for monitoring production, and probe gauge to inspect and ensure quality. Standard tools are also available for compression spring machines. Our latest tech for tools: UVw Surface Treatment brings spring production to a greater stability level.
  6. Complete peripheral equipment, such as spring holder and CCD profile magnifier.
Item Specification
Wire diameter(Steel wire) Ø0.4~3.2 mm
Ø.0158 - .126"
Max. outside diameter Ø60 mm

Axis 3 axis
Winding direction left hand/ right hand
Feed roller pair 3
Machine dimension(W/L/H) 1520x1420x1700(mm)
Machine net weight 1200kg
