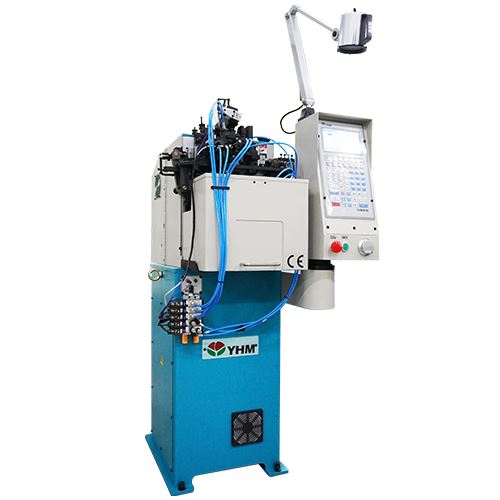

PRODUCTS LE Series CNC Tension Spring Machine

Model:LE-210

Feature Of Product

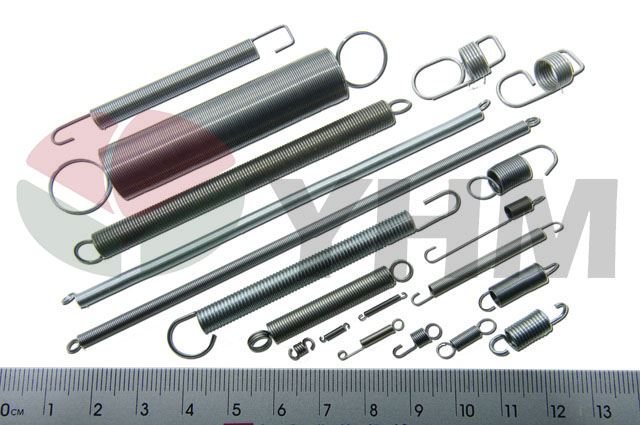

  1. This machine is multi-functional, it can produce precise small extension springs, small compression springs and small torsion springs in high speed.
  2. With 2 sets of feed roller, the feeding force is more consistent and thus more suitable to form soft wire, like resistance wire or spring with small spring index.
  3. Standardized tool.
  4. It can not only produce extra long extension spring of any special hook, but also equips all function of CT series machine.

Item Specification
Wire diameter(steel wire) Ø0.2~1.0 mm
Max. outside diameter Ø20 mm
Axis 2 axis
Winding direction left hand/ right hand
Feed roller pair 2
Machine dimension(W/L/H) 760/880/1550(mm)
Machine net weight 300kg
