PRODUCTS CF Series CNC Spring Machine

Model:CF-303

Feature Of Product

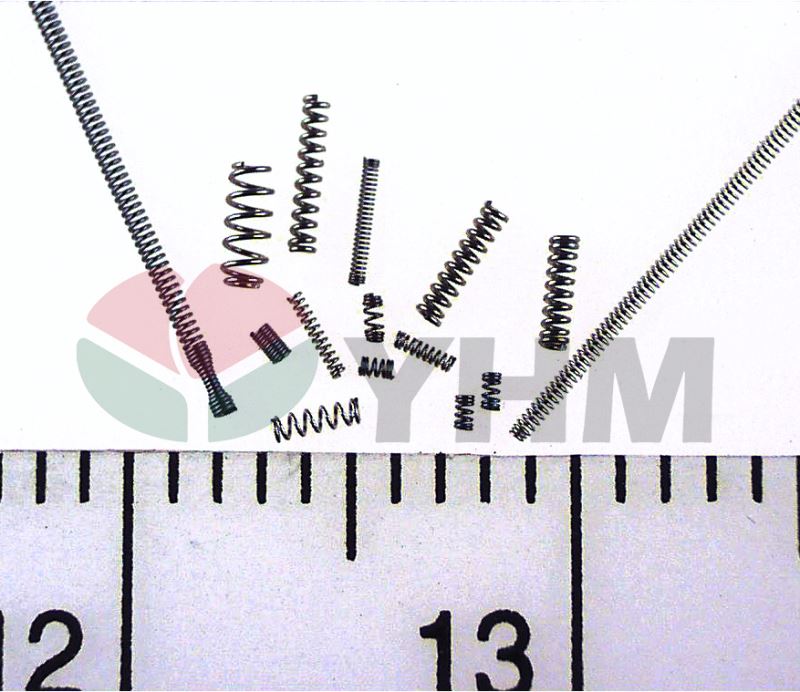

  1. For producing precise micro springs, such as probe springs, medical catheters and so on.
  2. Minimum wire diameter is Ø0.03mm.
  3. Three-axis servo controlled, spring outside diameter, pitch and length can be changed simply by modifying program, it greatly shortens set up time.
  4. Tool treatment technology is available for customer's choice, the production speed can be increased by 30~50% and tool life can be increased as well.
  5. Complete peripheral equipment, such as vacuum parts collector, stereomicroscope and CCD profile magnifier.

Item Specification
Wire diameter(steel wire) Ø0.03~0.4 mm
Ø.0012 - .0158"
Max. outside diameter Ø5 mm
Ø.2"
Axis 3 axis
Winding direction left hand/ right hand
Feed roller pair 1
Machine dimension(W/L/H) 1200x800x1400(mm)
Machine net weight 300kg
