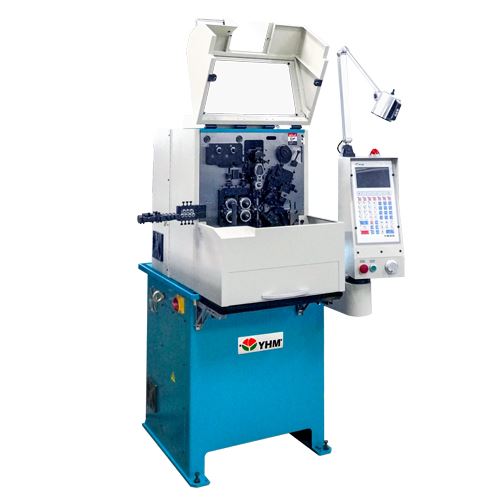

PRODUCTS CF Series CNC Spring Machine

Upper and Lower Slides
Easy switching between straight cutting or rotary cutting, with flexible and precise cutter length adjustments.

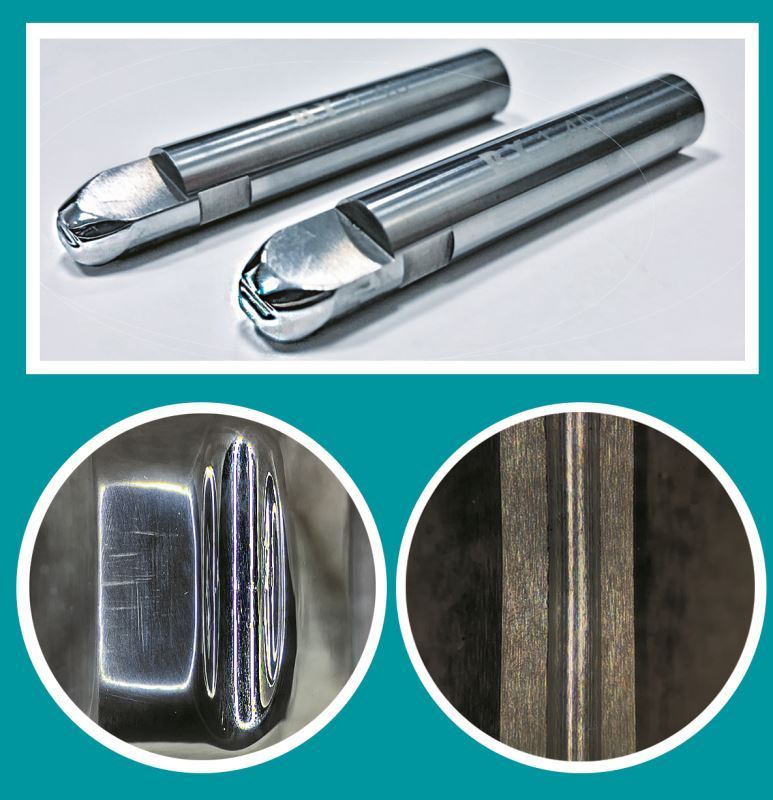

Mandrel Transmission Mechanism
Featuring an integrated structure to enhance rigidity, significantly improving cutting quality and greatly reducing the frequency of cutter length adjustments.

Outer Diameter Slide
Designed with a four-rail structure, allowing the slide components to remain unchanged when changing right or left coiling direction. An optional Initial Tension Control Device can be added to further improve production quality.

Wire Feeding Structure

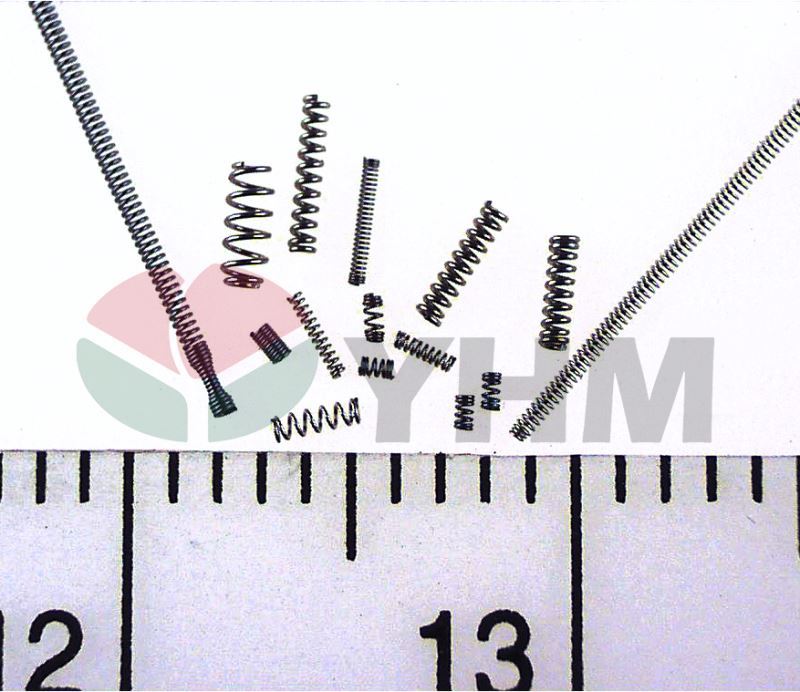

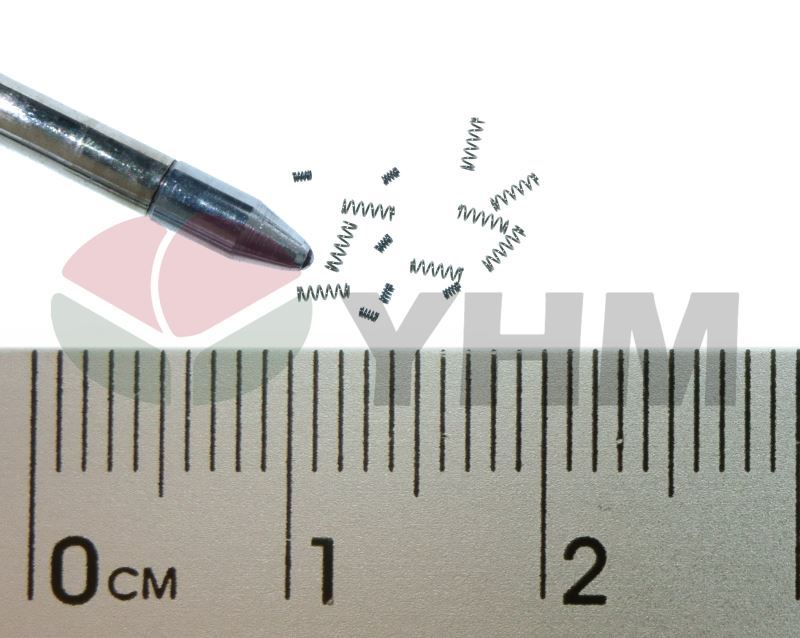

Developed from years of experience in forming ultra-fine wires, this new wire feeding structure achieves a feeding resolution of up to 0.001 mm. Even when using wires as thin as Ø0.1 mm to make springs, machine setup can be completed easily within 30 minutes.

Standard 8 Axis Design
Wire feeding axis, Upper slide axis, Lower slide axis, Push pitch tool axis, Mandrel holder axis, Mandrel extend/retract axis, OD upper slide axis, OD lower slide axis

Option
Upper and lower initial tension axis (2 axes)
